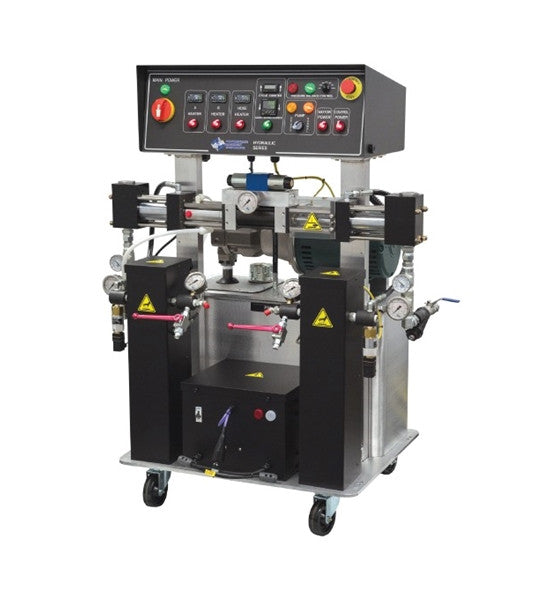

PMC PH-40 Proportioner
Read more details in Description tab below
This item requires LTL shipping. Please contact us to order.
SKU:
PMC PH-40
Call 855.777.2955 to order
Ideal for All Foam Insulation Applications
Classic” PH/PHX-40
Hydraulic Proportioner for Foam and Coatings
The PMC “Classic” Series offers the professional great value, high output and
rugged design.
• Up to 40 lbs per minute Foam and 2.8 gpm Coatings
• Pressure Balance Control (PBC)
• Inlet Monitoring System
• Proximity Reversing System
• Auto Shut Down Counter
• Point to Point Wiring
• Opposed Piston Metering Pumps
• Digital Automatic Temperature Control
• Open Frame Design
• Heater, Pressure Range and Ratio Options
• Automatic ISO Lube System
• Hose Heat Tap Settings
• CE Certified
• Individual “A” and “R” Hybrid Heaters
Polyurethane Machinery Corporation • Lakewood, NJ, USA • 732-415-4400
Innovative Spray Technology Made Simple
www.polymacusa.com
190917
Standard Features
The PMC “Classic” Series PH/PHX was “Designed with the Customer in
Mind” to provide applicator friendly and serviceability to meet today’s
market place demands.
The electrical console has been designed to eliminate the use of delicate circuit
boards and displays.
The open frame design format allows easy access to all components.
Automatic ISO lubrication system.
Manual Hose Heat Tap Settings to match length of hose being used.
Pressure Balance Control (PBC).
The reversing system is initiated by proximity switches and controlled by solid
state relays to virtually assure maintenance free operation and long service life.
The Auto Shut Down Counter stops the machine before the drum runs empty avoiding possible cavitation, downtime and
spraying off ratio material. The counter is adjustable to be set by the operator.
Point to Point wiring scheme makes troubleshooting a snap. All components are easily replaceable and readily available.
Opposed piston pumping is the industry benchmark and includes durable and easily serviceable ball checks.
The temperature sensing unit (TSU) operates in real time, sending a signal to the controller to maintain the chemical at the
optimum temperature. The thermocouple that reads the temperature can be quickly replaced without removing the TSU
block, a unique design feature that saves time and money.
Available up to 21Kw of heat, 2000-3500 psi and fixed ratios of up to 1.5:1, 2:1, 3:1, & 4.3:1.
Optional Equipment
PMC Spray and Pour Guns Material Transfer Pumps for 55 and 30 Gallon Drums Heated Hoses
Recirculation Blocks Calibration/Bleed Tool Replaceable TSU Probe
PMC Legend for Machine Descriptions
PH 3HP 230V 1PH RV 90T 10KW IM PBC
Machine
Series
Horsepower
(3hp, 5hp,
7.5hp, 10hp)
Voltage
(230v, 380v
or 460v)
Phase
(Single or
Three)
Recirculation
Valves
Transformer Size
(30V, 70V, 90V,
or 120V)
Heater
Wattage
Inlet
Monitoring
Pressure
Balance Control
Ordering Information
Part # Description
PH-40
103132 PH40,5HP,230V,1PH,90T,15KW
103142 PH40,5HP,230V,1PH,120T,15KW
103143 PH40,5HP,230V,1PH,120T,18KW
103242 PH40,5HP,230V,3PH,120T,15KW
103243 PH40,5HP,230V,3PH,120T,18KW
103244 PH40,5HP,230V,3PH,120T,21KW
103343 PH40,5HP,380V,3PH,120T,18KW
103442 PH40,5HP,230V,1PH,RV,120T,15KW
103443 PH40,5HP,230V,1PH,RV,120T,18KW
103542 PH40,5HP,230V,3PH,RV,120T,15KW
103543 PH40,5HP,230V,3PH,RV,120T,18KW
103544 PH40,5HP,230V,3PH,RV,120T,21KW
103643 PH40,5HP,380V,RV,120T,18KW
202294 PH40,5HP,460V,3PH,120T,18KW
PHX-40
104142 PHX40,5HP,230V,1PH,120T,15KW
104143 PHX40,5HP,230V,1PH,120T,18KW
104242 PHX40,5HP,230V,3PH,120T,15KW
104243 PHX40,5HP,230V,3PH,120T,18KW
104244 PHX40,5HP,230V,3PH,120T,21KW
104343 PHX40,5HP,380V,3PH,120T,18KW
104344 PHX40,5HP,380V,3PH,120T,21KW
104432 PHX40,5HP,230V,1PH,RV,90T,15KW
104442 PHX40,5HP,230V,1PH,RV,120T,15KW
104443 PHX40,5HP,230V,1PH,RV,120T,18KW
104543 PHX40,5HP,230V,3PH,RV,120T,18KW
104544 PHX40,5HP,230V,3PH,RV,120T,21KW
104644 PHX40,5HP,380V,3PH,RV,120T,21K
Call us today at 855-777-2955 to see which Proportioner is right for you!
